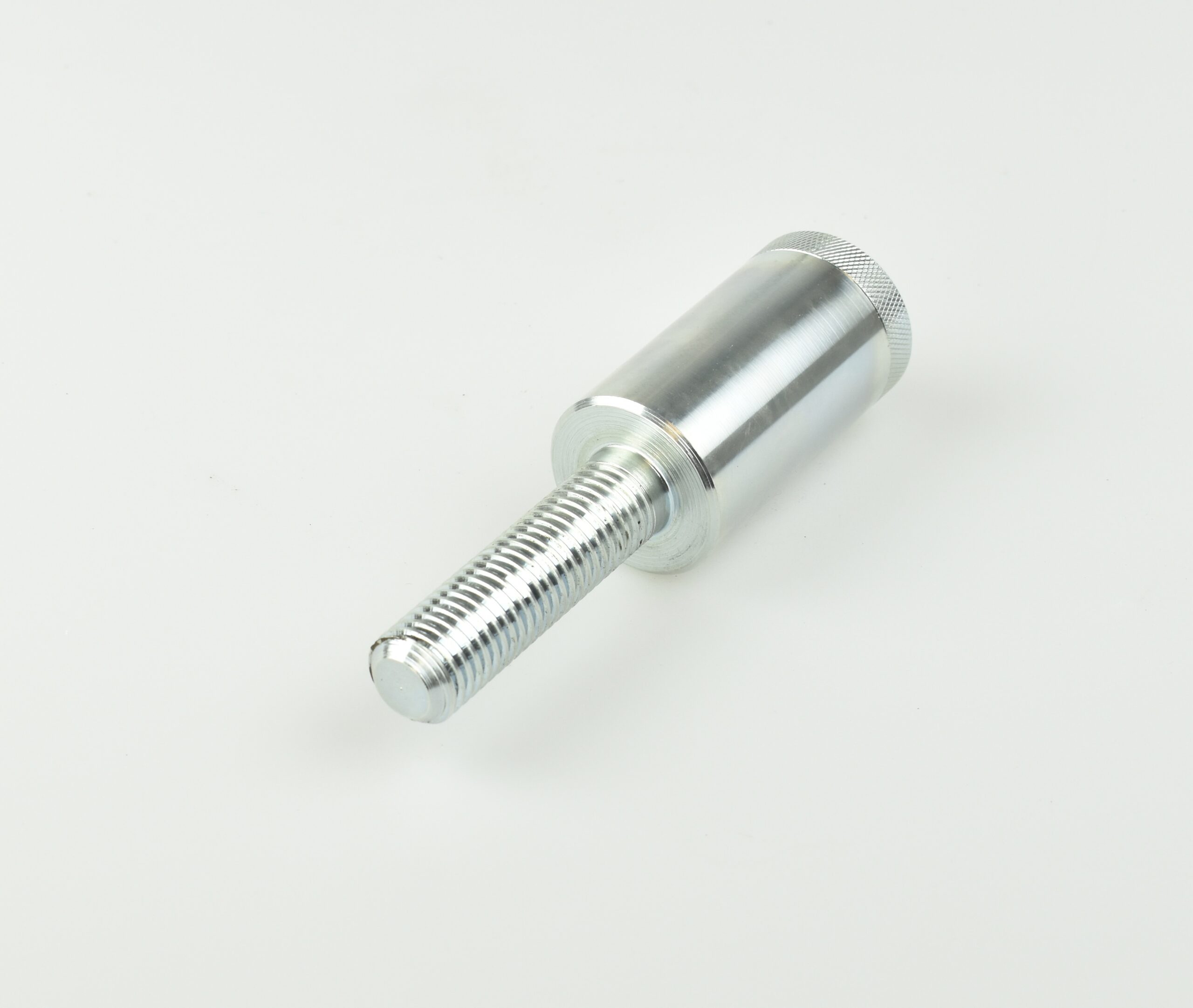

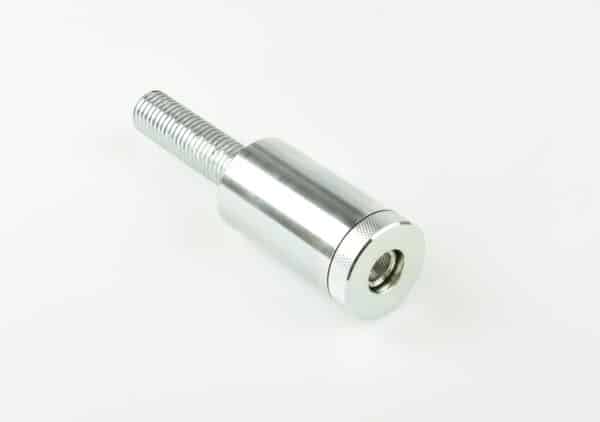

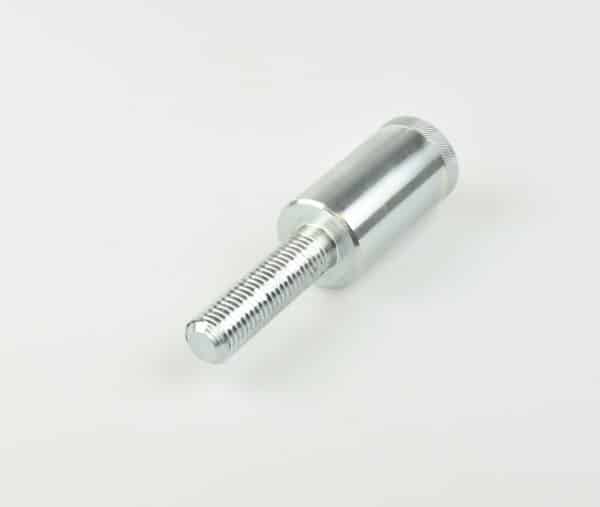

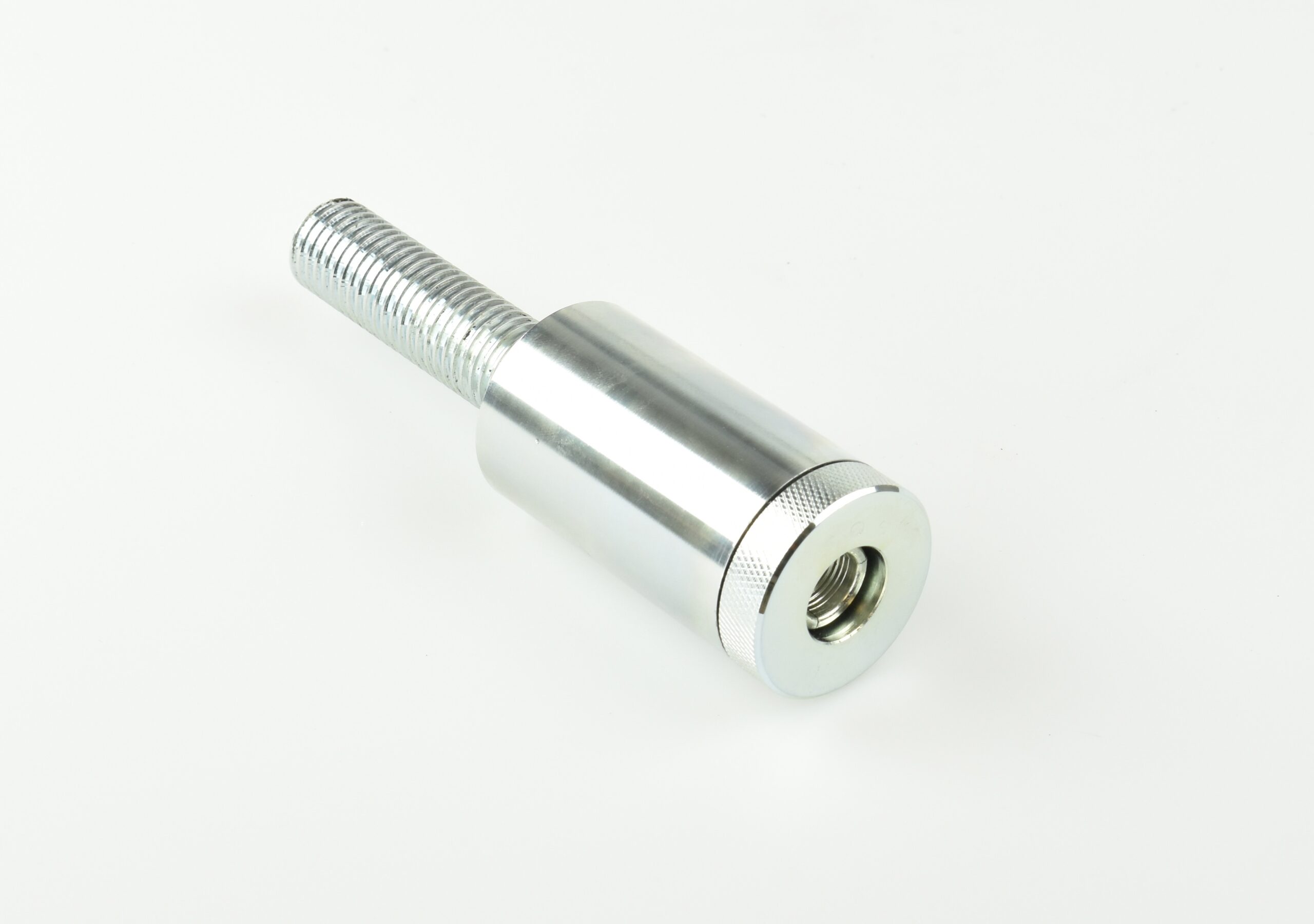

NAA1
Non-adjustable Anchors – with 3/4″ stem
![Made in USA](https://www.post-tensionproducts.com/wp-content/uploads/2023/07/made-in-usa-logo.png)
Available Soon
These fixed end anchors can be used at the terminal point of a barrier cable span when tensioning is provided at the opposing terminal end. At only 1.5” in diameter, these anchors make barrier cable installations look sleek and less visually intrusive. The anchor includes a machined 3⁄4” x 10 UNC threaded stem for use with our EZPlace Cable Rail embedment, or other commonly available threaded anchor embeds.
Surface mounted barrier cable anchors can be used when through column anchorages are not possible, or not desired. Such as when through column stressing locations will be covered by walls or other obstructions that will prevent later access to the stressing anchors. Stressing cable runs from the structure interior is also safer and easier than stressing cables from the exterior using a high-lift or scaffolding. Anchors always remain accessible, which eliminates the need to remove concrete to expose anchor ends for maintenance or repair.
Key Benefits:
- Safer than stressing cables from the structure exterior
- Anchors are always accessible
- Makes cable maintenance and replacement easier and cheaper
- Machined with 3⁄4” x 10 UNC threaded stem
- Fully zinc coated for durability
- Eases barrier cable installation
Pricing:
Contact info@PT-Prod.com for pricing and availability
Shipping info:
Not available online, must email sales@pt-prod.com
